Nguồn gốc:
Trung Quốc
Hàng hiệu:
Hwashi
Chứng nhận:
CE/CCC/ISO
Số mô hình:
WL-SQ-MF160Kx6
Băng hình
Băng hình
Băng hình

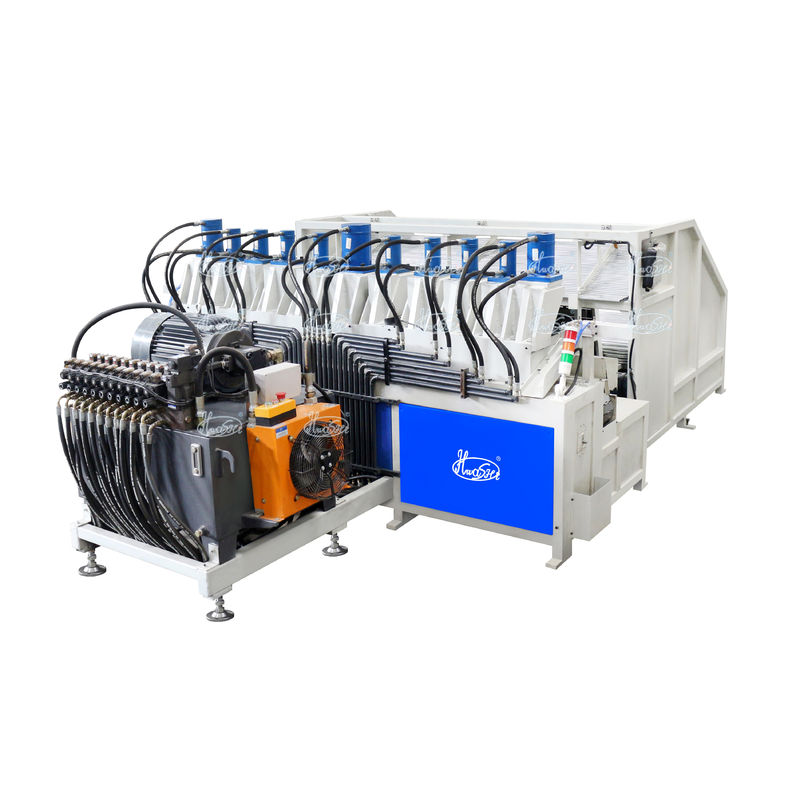

Hwahsi Automatic Short Tube Pressing and Forming Machine for IBC Frame Tube End Forming Machines
IBC Short Tube Automatic Pressing and Forming Machine is a special customized machine for IBC tube processing. It can achieve full automatic pipe feeding, pipe end forming and cutting, pipe hydraulic pressing, and automatic unloading process. No operator needed. It helps to greatly increase the production rate, and save manpower.
Full Automation: The IBC Short Tube Automatic Pressing and Forming Machine operates entirely through automation, eliminating the need for manual intervention.
Highly Efficient Production: The machine's automated functions greatly increase production speed, reduce processing cycles, and thereby improve overall production efficiency.
Controlled Pipe Quality: A precision control system ensures the quality of pipe forming, meeting relevant standards and requirements.
Manpower Savings: Due to the machine's fully automated operation, continuous human supervision is not required, saving on manpower and reducing production costs.
Multi functional Design: The machine integrates multiple functions, including pipe feeding, forming, cutting, hydraulic pressing, etc., into one unit, achieving a one-stop processing solution and enhancing overall production line efficiency.
The IBC Short Tube Automatic Pressing and Forming Machine holds significant potential in the IBC tube processing industry, providing businesses with an efficient, precise, and cost-saving production solution.

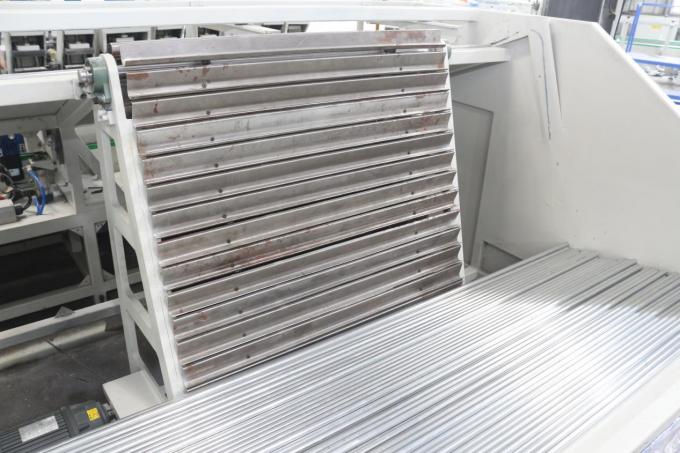

| Manually load the round tubes before processing into the hopper. The feeder will load the pipe to the hydraulic pressing station automatically. |

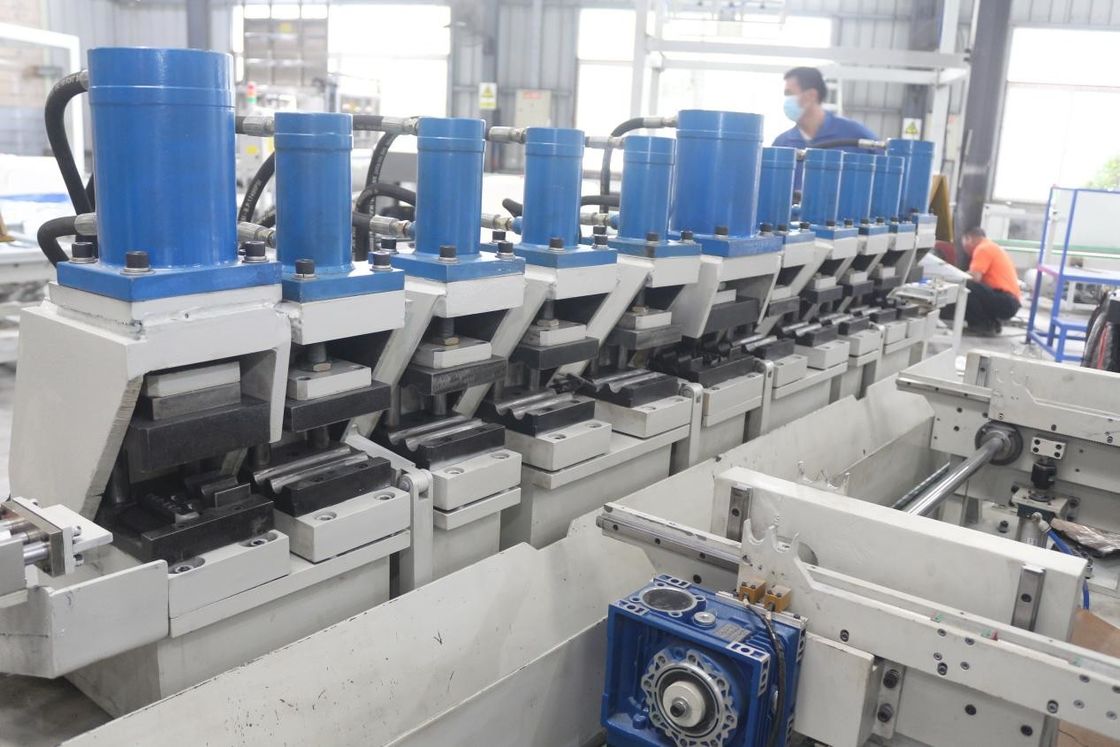

The mechanical arm will pick up two pipes and load them to the hydraulic pressing station to do the pressing and tube end shrinking. After pressing, the tube will be unloaded to the conveyor, then conveyor will move the final material into the trolley. |
|
Finished Product |
| Items | Data |
| Pipe Diameter | Round pipe 18mm (customized) |
| Pressing Source | Hydraulic |
| Pressing Mark Number | 8 |
| Cutting Function | Yes |
| Each Time Processing Number | 2 pcs |
| Efficiency |
12-15sec/2pcs |
