Name: Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SP-100K
Price: 157,805.00 USD
Availability: InStock

Nhà > các sản phẩm > Máy hàn điểm >

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

customizable AC pulse spot welder

hardware industry spot welding machine

adjustable pulse welding equipment

Nguồn gốc:

Trung Quốc

Hàng hiệu:

HWASHI

Chứng nhận:

CE/CCC/ISO

Số mô hình:

WL-SP-100K

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Chi tiết sản phẩm

Tên sản phẩm:

Hwashi có thể tùy chỉnh máy hàn điểm xung AC cho các yêu cầu hàn khác nhau trong ngành công nghiệp p

Ứng dụng:

hàn đồng nhôm thép

Kích cỡ:

850x900x1850*mm

Cân nặng:

450kg

Tiêu chuẩn:

CE/CCC/ISO

Bảo hành:

12 tháng

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 bộ

Giá bán

có thể đàm phán

chi tiết đóng gói

Gói gỗ biển xứng đáng

Thời gian giao hàng

7-30 ngày làm việc sau khi nhận được khoản thanh toán của bạn

Điều khoản thanh toán

L/C, T/T.

Khả năng cung cấp

50 bộ mỗi tháng

Sản phẩm liên quan

Băng hình

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

Nhận được giá tốt nhất

Băng hình

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

Nhận được giá tốt nhất

Băng hình

HWASHI Wire Frame T Butt Welding Machine

Nhận được giá tốt nhất

Băng hình

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price

Nhận được giá tốt nhất

Liên hệ với chúng tôi

+8613380655800

marketing@hwashi.com

Liên hệ ngay bây giờ

Mô tả sản phẩm

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

Product Description

AC pulse spot welding machine utilizes the general mains supply to lower the voltage and increase the electric curent, Such kind of lowvoltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due tothe resistance of work piece, high temperature will occur so the metal wil therefore generate high heat to make the work piecesin molten condition. Thus, the purpose of welding the two work pieces is achieved.

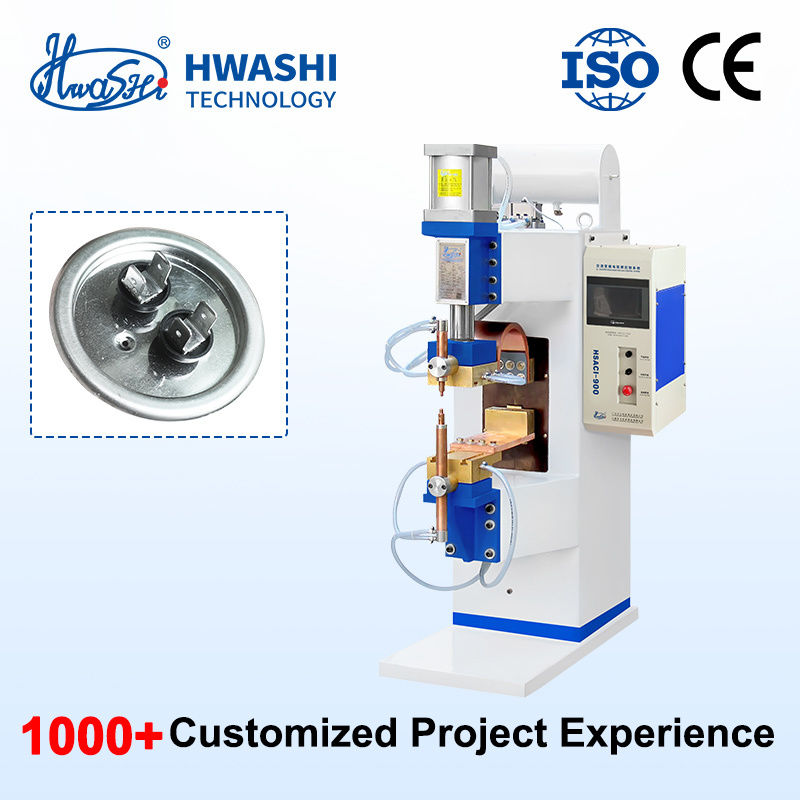

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 1

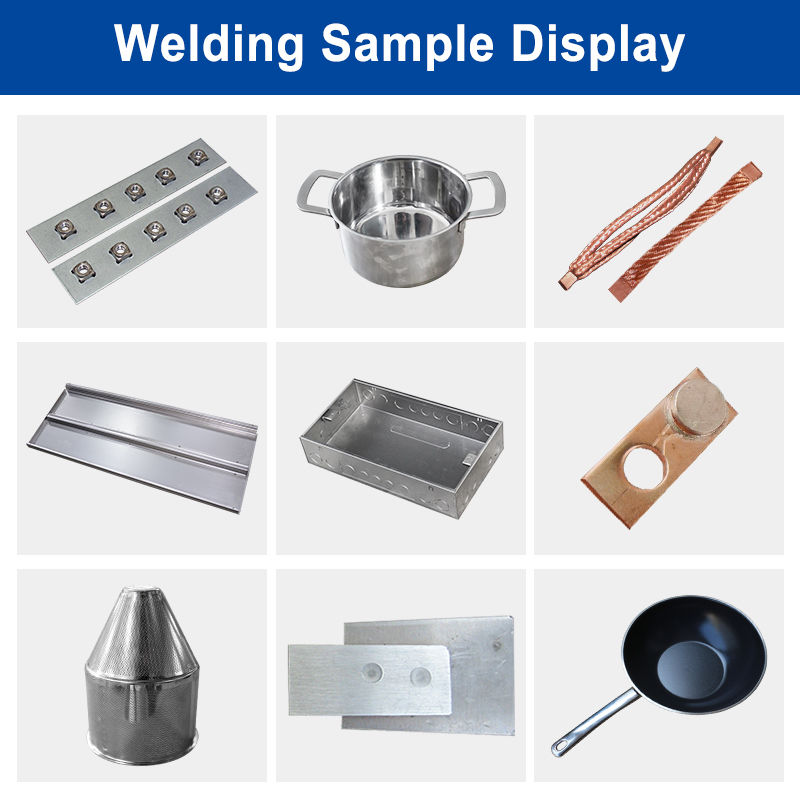

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 2

Features of The AC Pulse Spot Welding Machine
1) Three control functions: constant primary and secondary current, constant voltage;
2) Automatic adjustment of welding power and welding current;
3) Ensure the automatic cycle of each program segment of welding process in order to achieve complete automation;
4) When the current is too low, it will automatically electrify to conduct repair welding;
5) Be able to use the control panel to set parameters for different welding models directly. Convenient operation, easy adjustment;
6) Both single welding and continuous welding are available and each welding cycle has three welding conditions;
7) The intensity and time of welding current of each welding condition could be set separately. In the meantime, the current could be set to gradual up or down;
8) Pneumatic control (action output); the pneumatic control could be delayed;
9) Be able to store 9 types of welding models. Be able to select and adjust different welding models by choosing the number of models;
10) Silicon controlled adopts phase shift to trigger and the synchronous voltage is from the grid voltage to ensure the silicon controlled and grid will conduct synchronous phase shift trigger so as to achieve precise adjustment of the welding current and to meet the requirement of welding different materials;
11) When the power grid voltage fluctuates, the automatically compensation can make the welding current more stable. Thus, the welding quality could be guaranteed even though the grid voltage is under bad situation.

Model	Input Voltage	Related Capacity	Max Short Circuit Current	Duty Cycle Rate	Electrode Force	Electrode Stroke	Cooling Water
	V	KVA	KA	%	KG	mm	L/min
WL-S-5K	220	5	1	25	30	25	4
WL-S-10K	380 1PH	10	2.5	25	100	50	4
WL-S-16K	380 1PH	16	4.5	25	100	50	6
WL-SP-25K	380 1PH	25	7	25	350	80	6
WL-SP-35K	380 1PH	30	9	25	350	80	6
WL-SP-50K	380 1PH	50	13	25	800	100	6
WL-SP-75K	380 1PH	75	18	25	1000	100	8
WL-SP-100K	380 1PH	100	20	25	1000	10	8
WL-SP-150K	380 1PH	150	25	25	1000	8100	10
WL-SP-200K	380 1PH	200	30	25	1500	100	10
WL-SP-250K	380 1PH	150	38	25	1500	100	12
WL-SP-300K	380 1PH	300	45	25	2000	100	16

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 3
