High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length

High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length

high speed refrigerator condenser machine

customizable wire tube production line

automatic wire shelf welding equipment

Nguồn gốc:

Trung Quốc

Hàng hiệu:

HWASHI

Chứng nhận:

CE/CCC/ISO

Số mô hình:

WL-TSP-MF150K

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Ứng dụng:
Sản phẩm lưới
Kích cỡ:
Theo sản phẩm của bạn
trọng lượng (kg):
Theo sản phẩm của bạn
Tình trạng:
Mới
Bảo hành:
1 năm
Tiêu chuẩn:
CN
Vật liệu hàn:
dây sắt
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
có thể đàm phán
chi tiết đóng gói
Gói gỗ xứng đáng đi biển hoặc Phim PVC cho FCL
Thời gian giao hàng
30 ngày làm việc sau khi nhận được khoản thanh toán của bạn
Điều khoản thanh toán
L/C,T/T
Khả năng cung cấp
50 bộ mỗi tháng
Mô tả sản phẩm
Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine
This specialized production line is designed specifically for manufacturing condensers made of wires and serpentine bundy tubes. The complete line integrates multiple machines to create an efficient manufacturing process.
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 0
Production Line Components

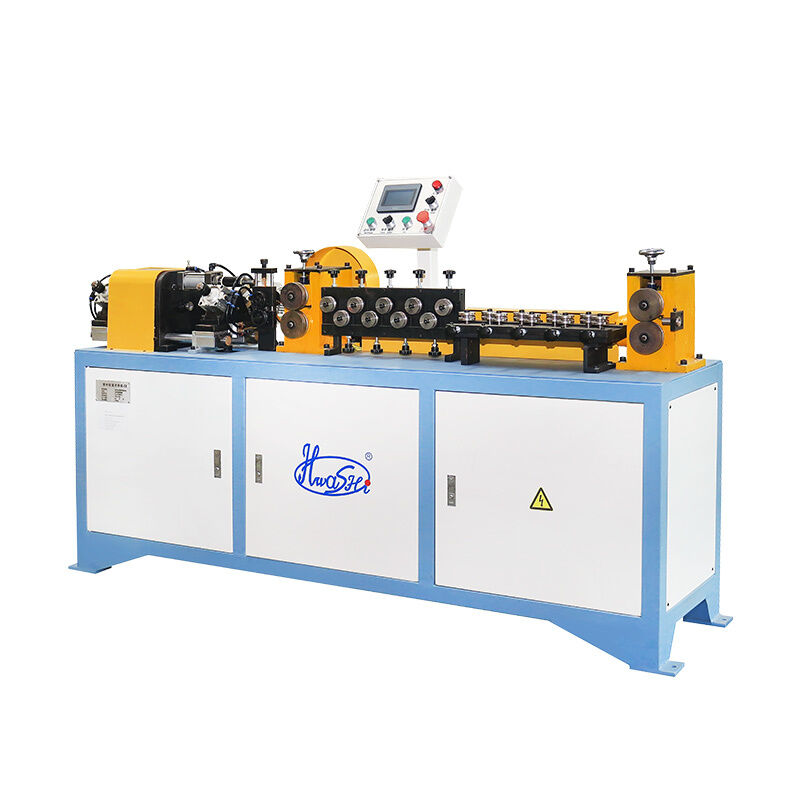

  • High speed wire straightening and cutting machine
  • Tube straightening and cutting machine
  • Tube bending machine
  • Automatic condenser welding machine
  • Additional equipment: tube end expanding/shrinking machine, condenser folding machine
We design complete production lines according to your product drawings and efficiency requirements. Simply provide your product specifications and output rate requirements, and our engineers will develop the most suitable proposal.
Production Process
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 1 High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 2
Condenser Specifications
Parameter Specification
Wire diameter 1.1-1.5mm
Bundy Tube Diameter 4.76/6.35/8mm
Bundy Tube Radius R15/R50/R100
Width range 420-600mm (customized)
Length range 450-1200mm (customized)

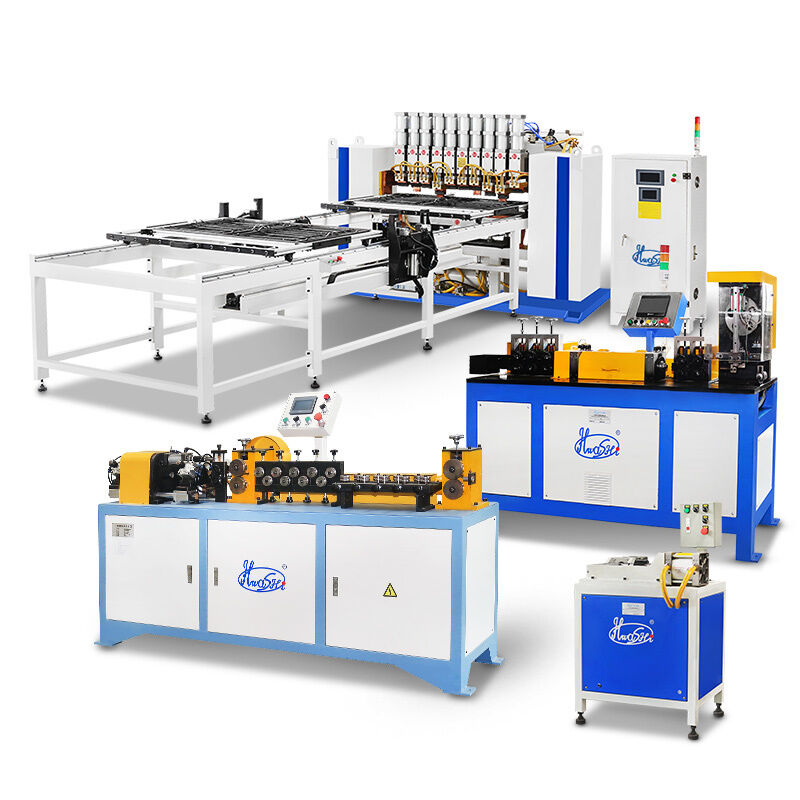

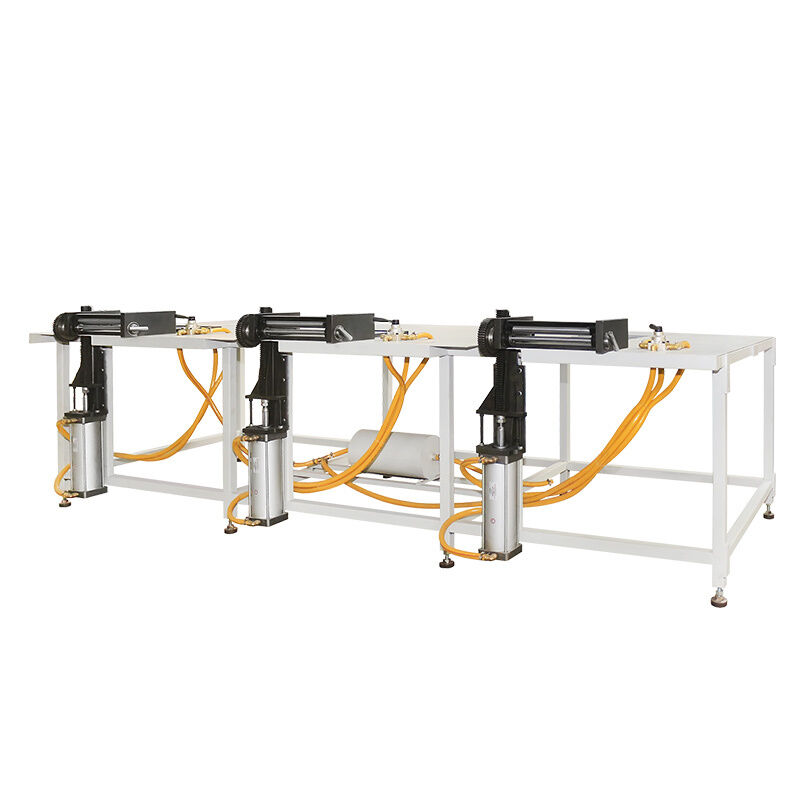

Production Line Equipment
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 3 High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 4 High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 5
Additional Automation Systems
Automatic Wire Filling System
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 6
Pre-cut straight wires are loaded into the hopper, and the wire filling machine automatically places wires into the fixture. This system increases working efficiency and reduces labor requirements.
Automatic Double-layer Feeder
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 7
While one fixture undergoes welding, the wire filling system simultaneously loads wires onto the other fixture. Upon welding completion, the feeder automatically exchanges fixtures, significantly increasing production efficiency.
Technical Features
Product Name: Refrigerator Wire Tube Condenser Production Line Machine
Weight: 500-1000KG
Welding Accuracy: High Accuracy
Welding Speed: High Speed
Wire Diameter: 0.2-2.5mm (According To Power)
Applications
This versatile wire mesh welding equipment is essential for various industrial applications including construction, agriculture, fencing, and industrial settings. The machine's high accuracy welding capability creates precise and durable wire mesh panels that meet specific size and shape requirements.
